EOT Cranes Over Hydraulic Cranes
EOT Cranes Over Hydraulic Cranes

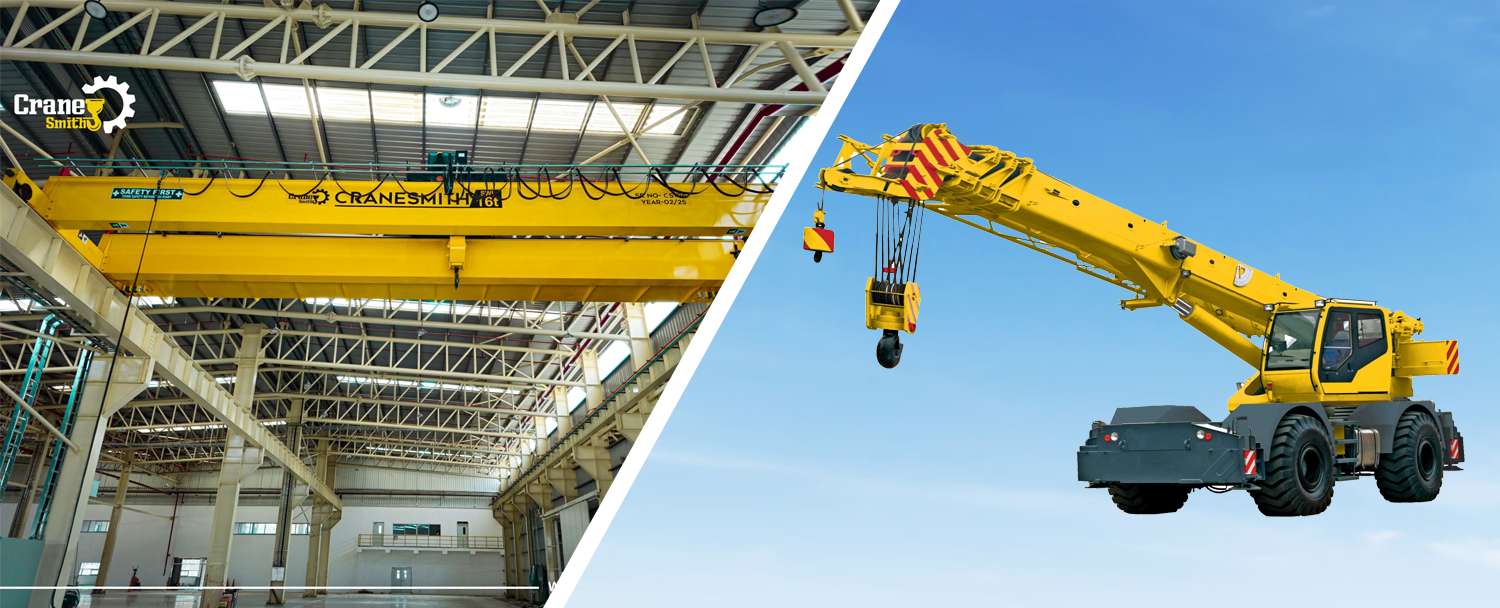

In the world of material handling and heavy-duty lifting, choosing the right crane is crucial for productivity, safety, and cost-efficiency. Among the available types, Electric Overhead Traveling (EOT) cranes have emerged as the preferred choice in industrial settings over hydraulic cranes. This preference is driven by several factors, including operational efficiency, structural design, long-term cost advantages, and suitability for fixed, high-volume applications.
1. Operational Design & Use Case

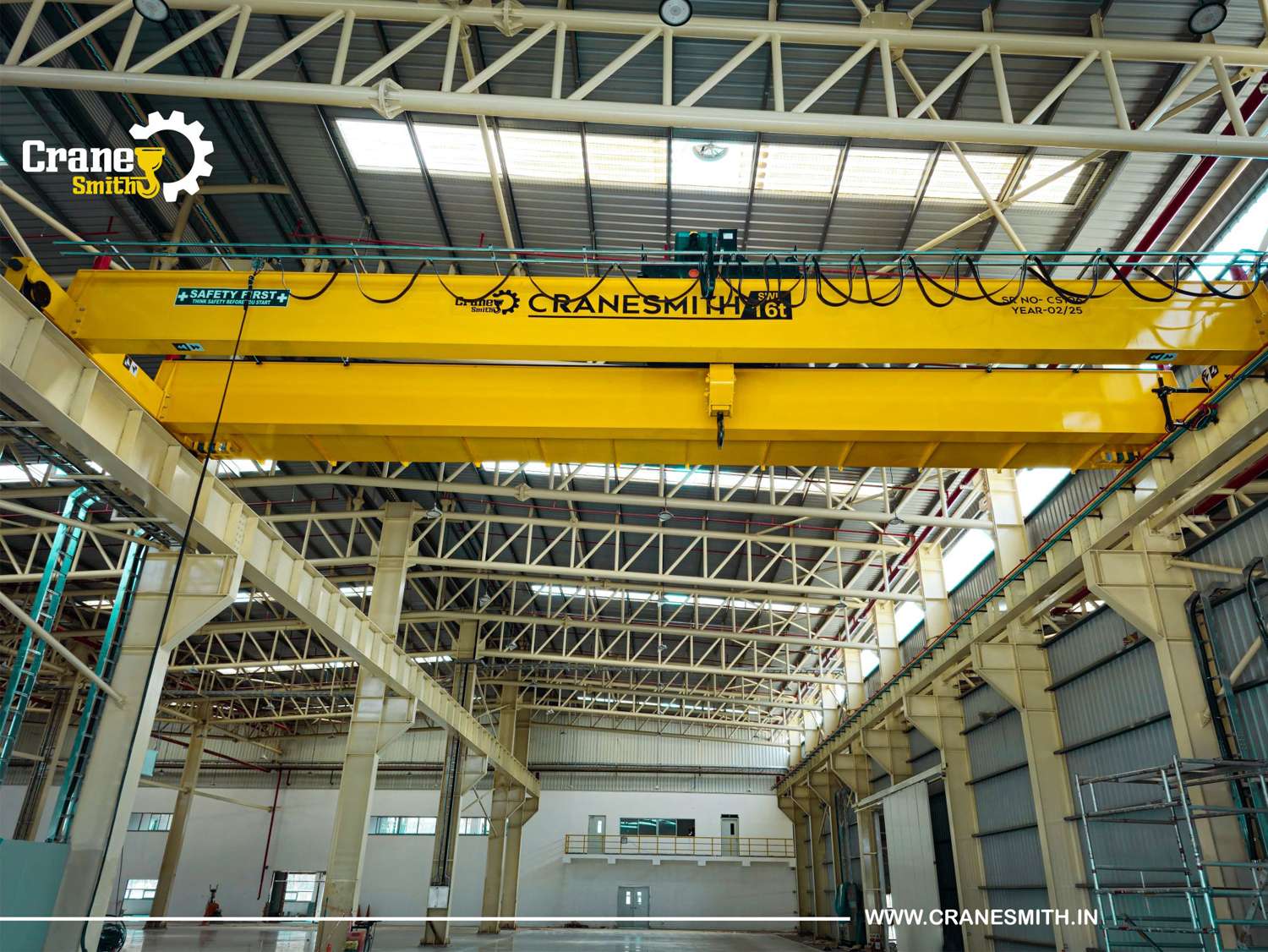

EOT Crane- EOT cranes are fixed overhead cranes mounted on gantry girders, allowing horizontal travel along rails installed at height.
- They are ideal for repetitive, linear, and indoor material handling in manufacturing, fabrication, and warehouse environments.

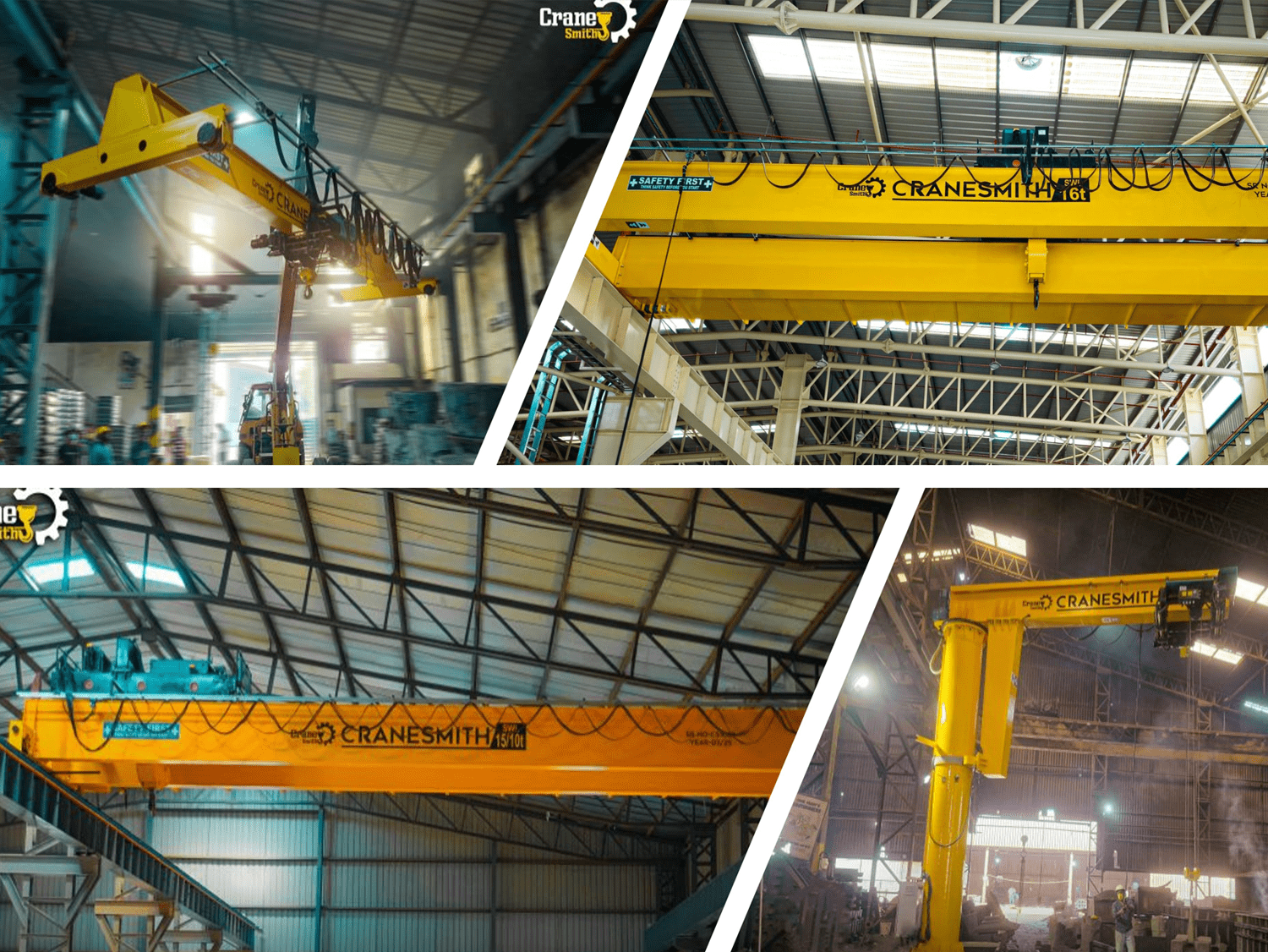

- Different models like Single Girder, Double girder, Jib Crane, Gantry Crane, Semi Gantry Crane, Light System Crane, Under Slung Crane, etc and hoists, according to it are available for choosing based on requirements.
Hydraulic Crane
- Hydraulic cranes are mobile and rely on hydraulic cylinders and booms for lifting.
- Better suited for construction, outdoor, and irregular lifting where flexibility and mobility are key.
Verdict: For indoor and fixed location lifting, EOT cranes provide a seamless and efficient solution compared to the relatively slower and less precise hydraulic cranes.
2. Load Capacity and Precision
- EOT cranes are designed for higher capacities, often ranging from 1 ton to over 100 tons, with precise motion control using VFDs and automation systems.
- Hydraulic cranes are versatile but limited in repetitive lifting accuracy and speed, especially over long durations.
Verdict: For high-volume, high-precision lifting, EOT cranes outperform.
3. Safety and Stability
- EOT cranes are fixed systems, higher safety standards, reducing risks associated with crane tipping or boom failure.
- Hydraulic cranes involve more manual intervention, site levelling, and are prone to instability on uneven surfaces.
Verdict: EOT cranes offer higher structural safety and lower chances of human error in controlled environments.
4. Maintenance and Downtime
- EOT cranes feature fewer mechanical moving parts, especially with electric hoists, leading to less frequent breakdowns.
- Hydraulic systems are complex with pumps, seals, cylinders, and hoses that require frequent inspections and part replacements.
Verdict: Lower downtime and easier maintenance make EOT cranes more reliable for 24/7 industrial operations.
5. Cost Efficiency
Cost Element | EOT Crane | Hydraulic Crane |
Initial Purchase | Moderate | High |
Installation Cost | One-time setup (higher) | Minimal |
Operating Cost | Low (electric motor-based) | High (fuel/hydraulics) |
Maintenance Cost | Low | High (due to moving parts) |
Life Cycle Cost | Cost-effective | Expensive over time |
AMC & Maintenance (annual) | Moderate | Very High |
Expected Life Span | High – up to almost 25 years | Low – up to 12 years |
Total 10-Year Cost (approx) | Moderate (including power, AMC, labor) | Very High |
- EOT cranes have a higher initial installation cost (including civil structure, girders, rails), but much lower operational and maintenance costs.
- Hydraulic cranes are more expensive in the long run due to hydraulic fluid replacement, wear and tear on booms, and fuel consumption.
Verdict: In terms of long-term cost, EOT cranes are significantly more economical.
6. Customization & Automation
- EOT cranes can be fully customized with automation, anti-sway technology, sensors, and IoT-enabled remote monitoring.
- Hydraulic cranes have limited scope for automation and are usually operated manually.
Verdict: EOT cranes are future-ready and adaptable to Industry 4.0 standards.
06/19/2025
